AEK-3000 HV feature of product

Universal AC input / Full range
Programmable output voltage (0%~105%)
Programmable output current (0%~105%)
High power density 16.3W / inch³
Forced current sharing at parallel operation
Constant current limit
Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
Remote setting multiple PSU via RS-232, RS-485 & I²C
Power OK signal
Remote ON / OFF, remote sense function
Protection: OVP, OLP, OTP, Fan failure
Accessory: CT Series

model

AEK-3000-150, AEK-3000-200, AEK-3000-250, AEK-3000-300, AEK-3000-400

Main Features

◎ Programmable output voltage and output current (0%~105%) ◎ Parallel connection with current sharing ◎ Compact design, high power density, high efficiency ◎ Constant current limit suitable for battery charging application

Rated Power

3000W

DC Output Voltage

150V; 200V; 250V; 300V; 400V

DC Output Quantity

Single

Rated Current

20A; 15A; 12A; 10A; 7.5A

Ripple & Noise (Max.)

1500mVp-p; 2000mVp-p; 2500mVp-p; 3000mVp-p; 4000mVp-p

Input Voltage Range

90~264VAC, 127~370VDC

Inrush Current (Typ.)

33A / 115VAC, 65A / 230VAC

Function

Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim

Parallel Connection

Yes

Protection

Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

Cooling

Load and temperature control fan

Efficiency

93%

Operating Temperature

-20~60℃

Storage Temp. & Humidity

-40~85℃, 10~95%RH

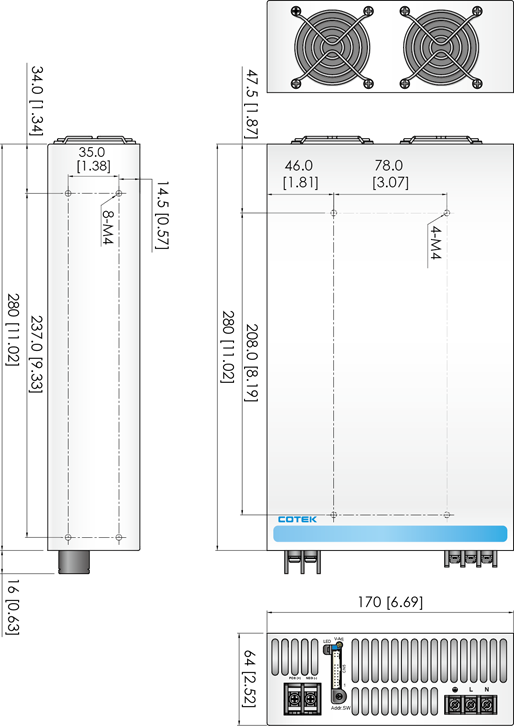

Dimension (WxHxD)

170x64x280 mm

Weight (Net)

3.8kg
